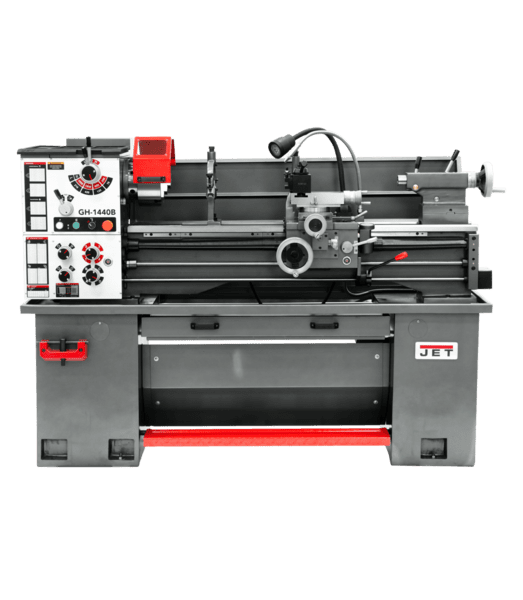

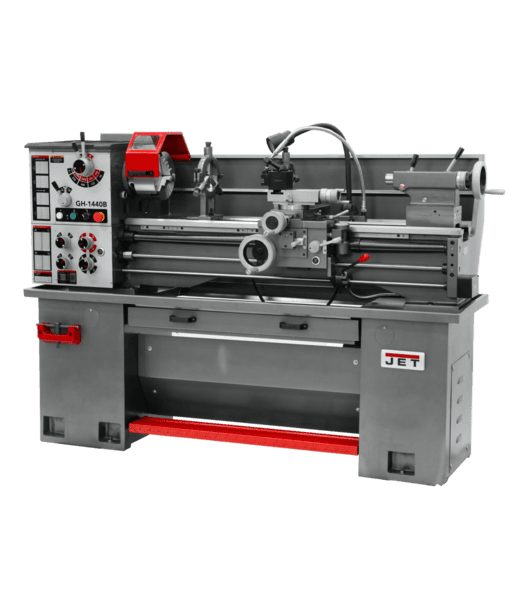

JET GH-1440B GH BNCH LTH NMS300 & TAPR ATT

$17,599.00

Carriage Travel: 37-2/5
Compound Slide Travel: 3-1/2
Cross Slide Travel: Inch
Length of Gap: 8
Max Tool Size: 4/5 x 4/5
Motor (HP): 2 HP, 230V, Single Phase
Number of Inch Threads: 34
Longitudinal and CrossRates: 32/32
Number of Metric Threads: 26
Number of Spindle Speeds: 8
Range of Cross Feeds (IPR): 0.007 -0.0187
Range of Inch Threads (TPI): 4-56
Range of Longitudinal: 0.002 -0.0548
Range of Metric Threads: 0.4-7
Range of Spindle Speeds: 70-1900
Spindle Bore: 2
Spindle Mount: D1-5
Spindle Taper with Sleeve: MT6
Steady Rest Capacity: 0.31-2.95
Swing Over Bed: 14"
Swing Over Cross Slide: 8
Swing Through Gap: 20
Tailstock Spindle Travel: 4
Taper in Tailstock Spindle: MT4
Weight: 1753
Width of Bed: 7.32

SKU: JT9-323448 Categories: , , ,

Features:

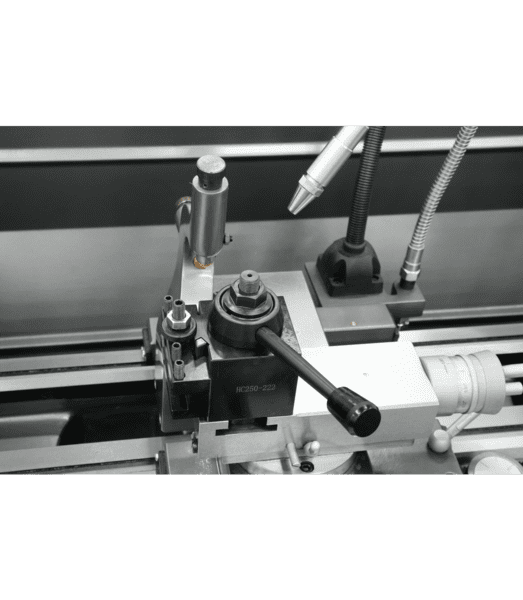

Compound and cross slide have backlash adjustment

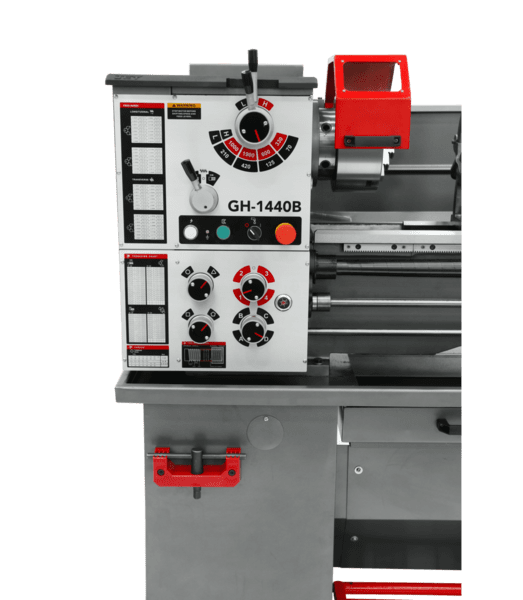

Emergency stop within easy reach of the Operator

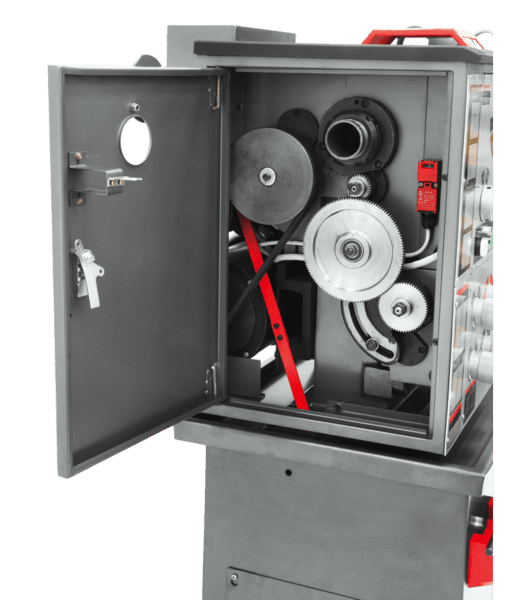

Enclosed gearbox design provides smooth, quiet operation
Gearbox gives wide range of inch & metric threading & feed capabilities with few gear changes
Spindle Spider available for ease of turning Gun barrels
Standard Accessories

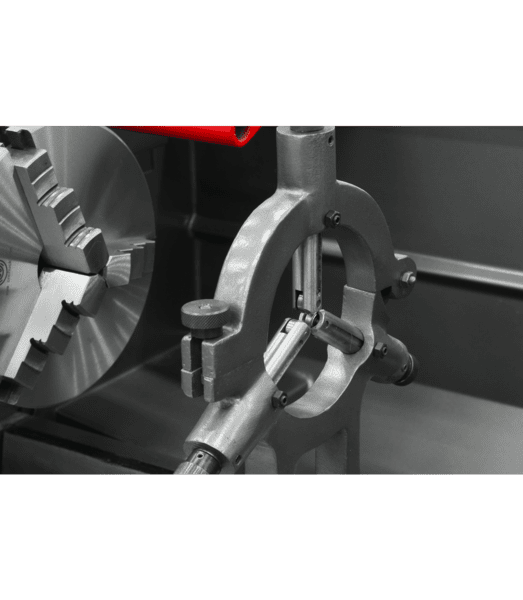

Steady Rest with Roller Bearings
Tailstock may be offset for turning taper

About JET

JET Tools, owned by JPW Industries, is committed to being the supplier you can depend on for the epitome of quality, innovation and Service. JET Tools has worked hard to make this a reality that has been ongoing since we introduced our products more than 50 years ago. With JET Tools being used by manufacturing professionals in plants, machine shops and workshops across the United States, we knew we could bring the same quality and reliability to another very important customer – You.

Contact us today to start your quote!

Please complete the form below or call us at (815) 451-7086.
Please enable JavaScript in your browser to complete this form.
Weight 1753 lbs
Dimensions 76 × 30 × 60 in
