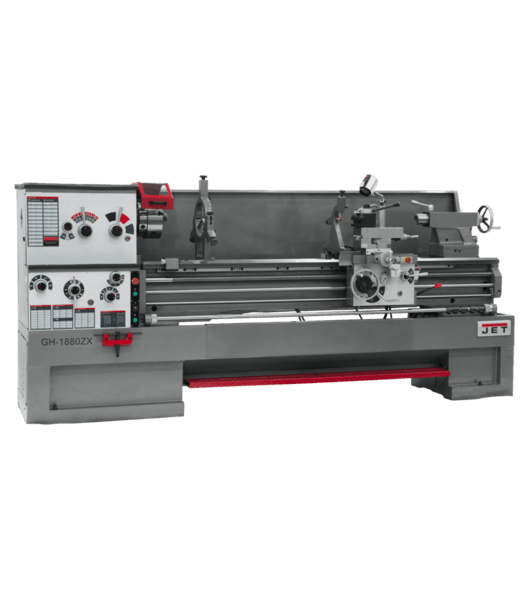

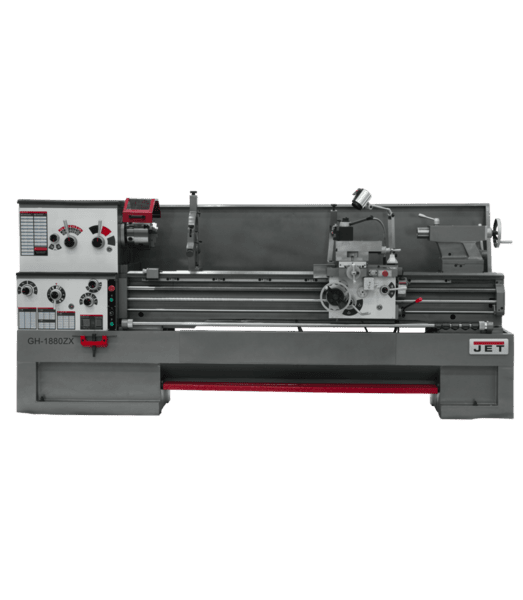

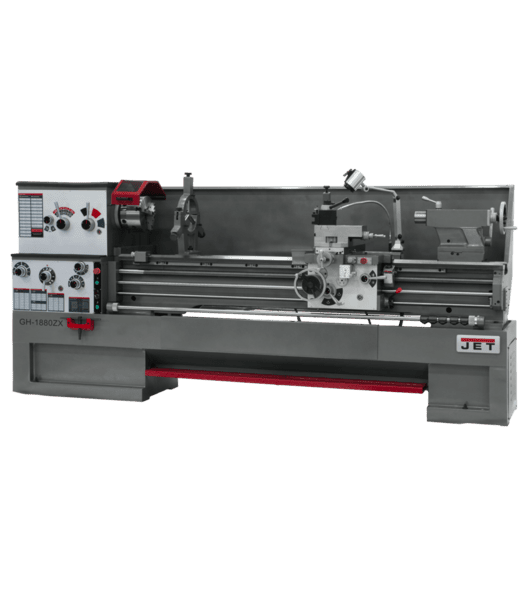

JET GH-1880ZX LATHE W/NE DP700 DRO 2 AX(TEXT

$37,749.00

Carriage Travel: 74-5/16
Compound Slide Travel: 5-1/8
Cross Slide Travel: Inch
Drive: Geared Head
Length of Gap: 12
Max Tool Size: 1 x 1
Motor (HP): 7-1/2 HP, 230/460, 3 Ph
Number of Inch Threads: 61
Longitudinal and CrossRates: 46/31
Number of Metric Threads: 24
Number of Spindle Speeds: 12
Range of Cross Feeds (IPR): .0006 - .0360
Range of Inch Threads (TPI): 1-5/8 - 72
Range of Longitudinal: .0015 - .0900
Range of Metric Threads: .05 - 20
Range of Spindle Speeds: 25 - 1,800
Size: 18 x 80
Spindle Bore: 3-1/8
Spindle Mount: D1-8
Spindle Taper with Sleeve: MT-7 (MT-5)
Steady Rest Capacity: 3/8 - 7-3/4
Style (Type): Engine - Large Spindle Bore
Swing Over Bed: 18"
Swing Over Cross Slide: 11
Swing Through Gap: 27-1/2
Tailstock Spindle Travel: 5
Taper in Tailstock Spindle: MT-5
Weight: 6590
Width of Bed: 13-1/8"

SKU: JT9-321488 Categories: , , ,

Features:

Articulating LED work lamp
Centrally located controls with jog button
Electronic Chuck Key Holder
Five position automatic carriage stop increases productivity
Full length splash guard and coolant return
Large capacity steady rest with ball bearing tips
Large easy to use foot brake
Mounting pads and levelers
Removable gap allows large diameter work
Tool box and adjusting tools

About JET

JET Tools, owned by JPW Industries, is committed to being the supplier you can depend on for the epitome of quality, innovation and Service. JET Tools has worked hard to make this a reality that has been ongoing since we introduced our products more than 50 years ago. With JET Tools being used by manufacturing professionals in plants, machine shops and workshops across the United States, we knew we could bring the same quality and reliability to another very important customer – You.

Contact us today to start your quote!

Please complete the form below or call us at (815) 451-7086.
Please enable JavaScript in your browser to complete this form.
Weight 6590 lbs
Dimensions 137 × 40 × 49 in
