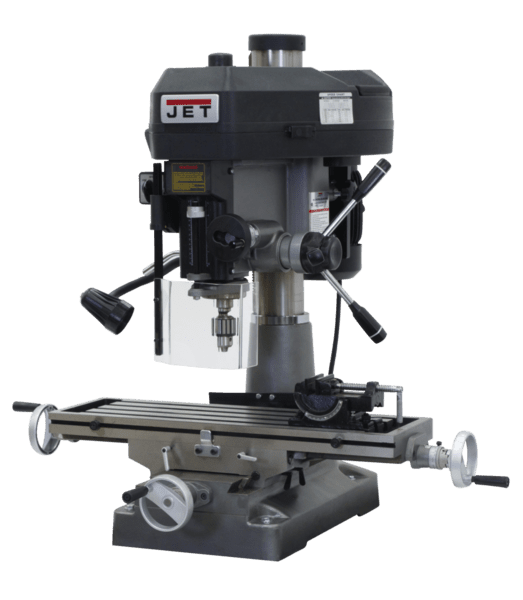

JET JMD-18 MILL/DRILL W/203 DRO

$6,319.00

Base Dimensions: 15-3/4 x 23-3/4
Column Diameter: 4-1/2
Face Mill Capacity: Inch
Max Distance Spindle to Table: 17-1/2
Motor (HP): 2 HP, 115/230V, 1Ph
Number of Spindle Speeds: 12
Quill Diameter: 3"
Range of Spindle Speeds: 150 - 3,000
Configurator Option Type: N/A
Spindle Taper: R-8
Spindle Travel: 5
Swing: 15-7/8
Table Size (L x W): 9-1/2 x 31-3/4
T-Slots Number and Size: 4 and 5/8
T-Slot Centers: 1-13/16
Weight: 660
Work Table Weight Capacity: 400

SKU: JT9-350401 Categories: , ,

Features:

1/2” Drill chuck, chuck arbor
360° head swivel
Adjustable carbide facemill
Base taper allows for easier clean up
Easy to read internal depth gauge
Forward and Reverse Switch
Mill Drill Stand, p/n 320020, shown in some images, is optional
One-piece cast iron column for added support
Positive quick-stop knob and easy to read internal depth gauge
UL Listed

About JET

JET Tools, owned by JPW Industries, is committed to being the supplier you can depend on for the epitome of quality, innovation and Service. JET Tools has worked hard to make this a reality that has been ongoing since we introduced our products more than 50 years ago. With JET Tools being used by manufacturing professionals in plants, machine shops and workshops across the United States, we knew we could bring the same quality and reliability to another very important customer – You.

Contact us today to start your quote!

Please complete the form below or call us at (815) 451-7086.
Please enable JavaScript in your browser to complete this form.
Weight 660 lbs
Dimensions 40 × 43 × 44 in
