Sale!
, ,

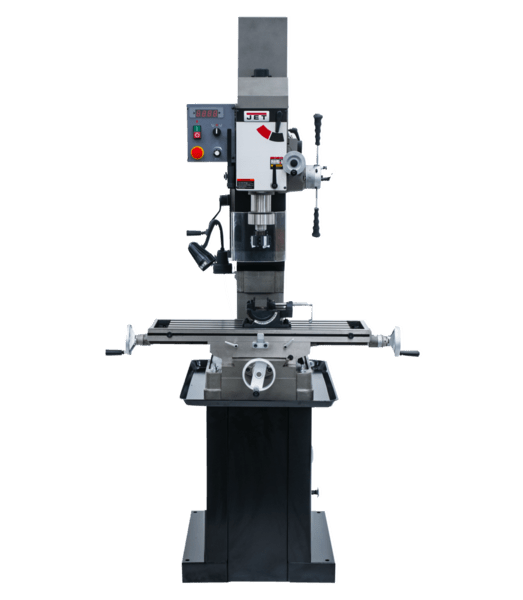

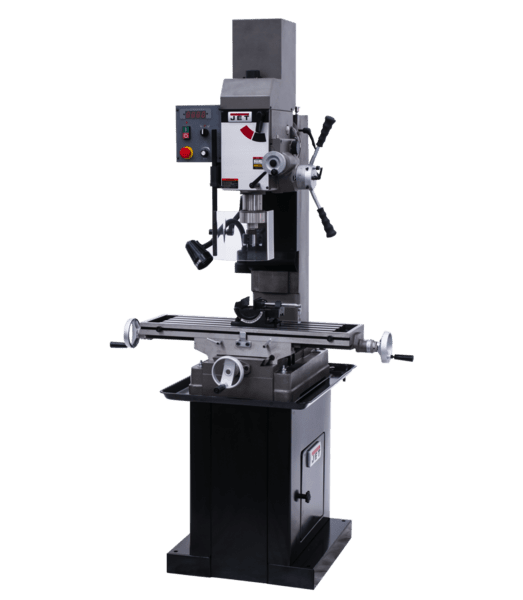

JET JMD-45VSPF VS GEARED HEAD W/PFD 115/230

Original price was: $8,139.00.Current price is: $6,511.20.

Base Dimensions: 26-11/16 x 15-15/16
Face Mill Capacity: Inch
Max Distance Spindle to Table: 18-1/8
Motor (HP): 1-1/2HP, 115/230V, 1Ph
Quill Diameter: 3"
Range of Spindle Speeds: 50-2500
Configurator Option Type: Base Machine
Spindle Taper: R8
Spindle Travel Auto: 4-1/4
Swing: 19-11/16
Table Cross Travel: 8-1/4
Table Size (L x W): 9-1/2 x 32-1/4
Weight: 827

SKU: JT9-351050 Categories: , ,

Features:

Easy to read internal depth gauge
Full power to the cutting tools through Variable Speed geared head
Heavy-duty design allows for a variety of precision drilling applications
Mill Drill Stand, p/n 350045, shown in some images, is optional
Milling table allows for movement
R8 spindle allows use of all mill tooling
Rapid spindle speed changes through quick-select gear shift levers
Square column with dovetail ways

About JET

JET Tools, owned by JPW Industries, is committed to being the supplier you can depend on for the epitome of quality, innovation and Service. JET Tools has worked hard to make this a reality that has been ongoing since we introduced our products more than 50 years ago. With JET Tools being used by manufacturing professionals in plants, machine shops and workshops across the United States, we knew we could bring the same quality and reliability to another very important customer – You.

Contact us today to start your quote!

Please complete the form below or call us at (815) 451-7086.
Please enable JavaScript in your browser to complete this form.
Weight 827 lbs
Dimensions 46.85 × 36.4 × 60 in
