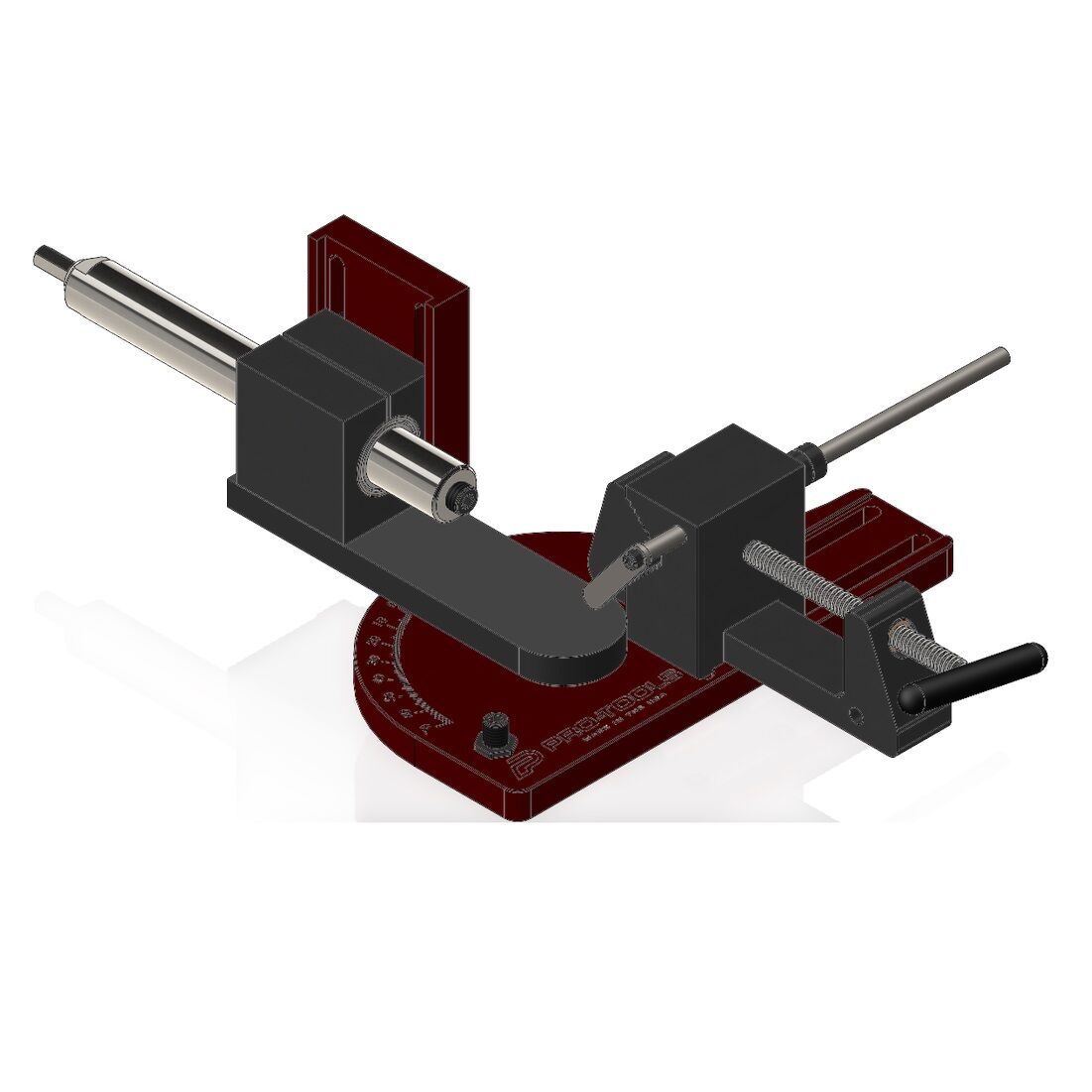

Pro-Tools Master Pipe and Tube Notcher
, ,

Pro-Tools Master Pipe and Tube Notcher

$699.95

  • Industry-leading square tube clamping technology simplifies square tube notching like never before
  • Angle changes require no tools, which minimizes time between notches and maximizes notch precision
  • Precision-machined, large-text degree and offset notching engravings ensure pinpoint accuracy on all notches
  • Included stop makes easy work of duplicate notches without having to mark tubes
  • Made from black-oxide treated, cold rolled steel and hard anodized aluminum for unrelenting durability
  • Double-sealed needle bearings seat the 1.25″ case-hardened shaft for ultimate performance
  • 100% designed, machined, and assembled in the USA
Categories: , ,

Pro-Tools Master Pipe and Tube Notcher

The Pro-Tools Master Pipe and Tube Notcher operation is simple, just clamp your tube in the calibrated swivel vise that allows for accurate and repeatable positioning at any angle.

Pro-Tools Master Pipe and Tube Notcher Features:

  • Industry-leading square tube clamping technology simplifies square tube notching like never before
  • Angle changes require no tools, which minimizes time between notches and maximizes notch precision
  • Precision-machined, large-text degree and offset notching engravings ensure pinpoint accuracy on all notches
  • Included stop makes easy work of duplicate notches without having to mark tubes
  • Made from black-oxide treated, cold rolled steel and hard anodized aluminum for unrelenting durability
  • Double-sealed needle bearings seat the 1.25″ case-hardened shaft for ultimate performance
  • 100% designed, machined, and assembled in the USA

Round Tube

  • Minimum Outside Diameter (OD): 1/2″ (12.7 mm)
  • Maximum Outside Diamter (OD): 3″ (76.2 mm)

Square Tube

  • Minimum Size: 1/2″ (12.7 mm)
  • Maximum Size: 2″ (50.8 mm)

Pipe

  • Minimum Size: NPS 1/4 (DN 8)
  • Maximum Size: NPS 2 1/2 (DN 65)

Other Specifications

  • Angled Notches: 0-60 degrees (up to 2″), 0-50 degrees (over 2 1/2″)
  • Offset Notches: Up to 1/2 the OD of the material

About Pro-Tools

Pro-Tools Tube Benders and Notchers are made in the USA and are a great choice for beginners as well as professional metal fabricators. The popular Pro 105 series benders can be found in garages and race car shops around the world. Choose from manual or hydraulic benders that are affordable and upgradeable.

Contact us today to start your quote!

Please complete the form below or call us at (815) 451-7086.
Please enable JavaScript in your browser to complete this form.
Weight 40 lbs
